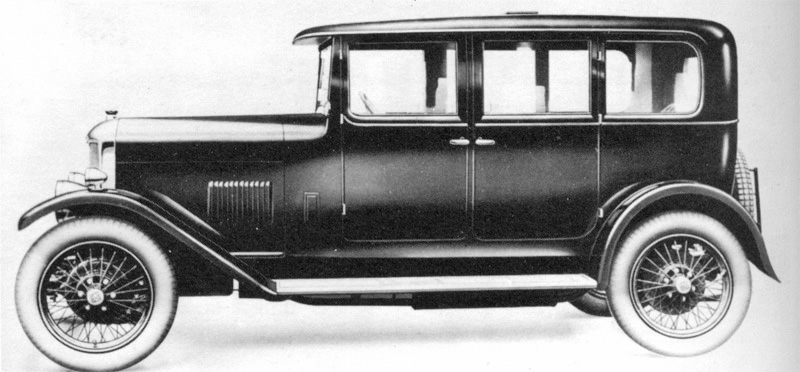

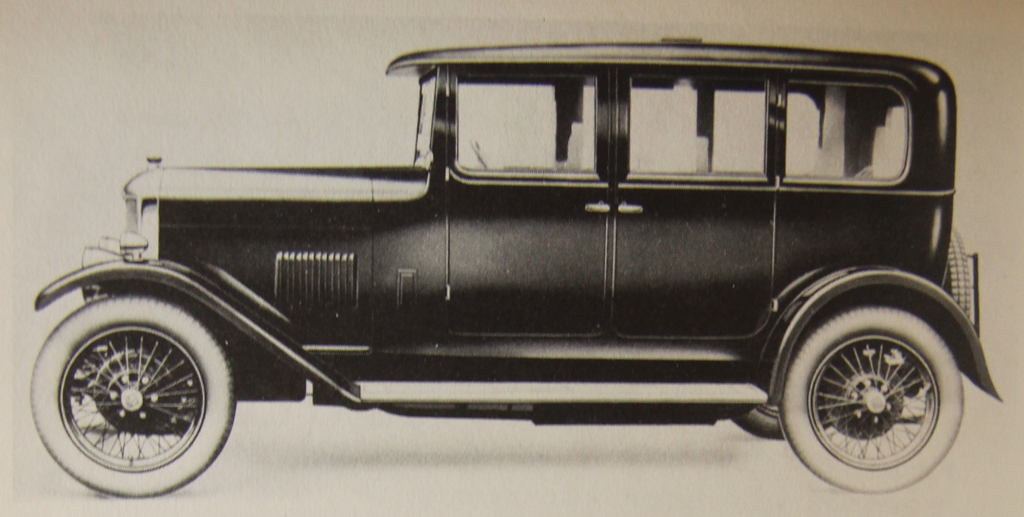

Riley Grangeworth 12. (1928)
Riley 12 Grangeworth
A six-light Coachbuilt Saloon, available in standard or De-luxe form.

ENGINE

4cyl Sidevalve
RAC Rating 11.9
Bore 69 Stroke 110
Capacity 1645 cc
50 bhp at 3600rpm
Carburation Zenith

TRANSMISSION

Dry Plate Clutch
3-speed gearbox.
Top gear ratio 5:1
3rd G/r 7.8:1
2nd G/r 12.1:1
1st G/r 19.4:1
Reverse 24.6:1

SUSPENSION

Semi Elliptic

BRAKES

Self Compensating 4-wheel

PERFORMANCE

DIMENSIONS

Wheelbase 9' (aprx 2730mm)
Track 4'4" (aprx 1310mm)
Length 13'6" (aprx 4090mm)
Width 5'6" (aprx 1620mm)
Wheels Artillery or Wire 6-stud 19x3.0
Tyres 29x4.95
Weight 12.75cwt (chassis only)
Fuel Tank 7galls

PRICE

£398
