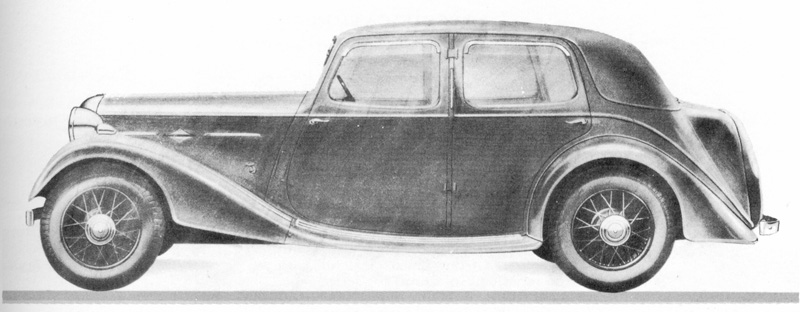

Riley 2½ Touring Saloon. (1937-38)

Although listed for almost the entire production period, it is unlikely that many were built. Initially launched in September as the cheapest model in the new big 4 range, by October orders were being discouraged and it seems that the first car was not running until late November.
The Touring Saloon was essentially a Briggs (Falcon / Merlin / Victor) body mounted on a bespoke Big Four Chassis. Initial attempts to fit the body to the standard chassis, and to put the engine into a 12/4 car proved unsuccessful, and so a new chassis was hastily designed, having most in common with the V8 chassis, but utilising parts from a range of other models. However, there were still many problems in mating the two together, and it is believed that only 1 made it out of the factory.
There are claimed sightings in the 1960's of one example (believed to have been registered DHP238), but none are known to have survived since. General consensus is that 2 or 3 were completed, out of 6 initially planned. One was sold to a customer, and the others were development vehicles, which may never have been registered. All would have been essentially hand built 'specials', and the almost insurmoutable problems of the model may have led to it's early trip to the scrapyard.

Chassis Types 38BX

ENGINE

4cyl ohv
RAC rating 16.07hp
Bore 80.5 Stroke 120
Compression Ratio 6.1:1
Capacity 2443 cc
82bhp at 4300rpm
Carburation SU / Zenith

TRANSMISSION

3-speed dual overdrive gearbox.
3rd o/d Gear ratio 3.97:1
3rd g/r 5.5:1
2nd o/d g/r 6.15:1
2nd g/r 8.25:1
1st g/r 14.3:1
Reverse 17.87:1

SUSPENSION

Semi-Elliptic

BRAKES

Girling mechanical rod with wedge operated shoes
16" Drums.

PERFORMANCE

0-50mph 14.9secs
Max speed 87mph
Fuel Consumption 25/34mpg

DIMENSIONS

Wheelbase 9'1" (aprx 2780mm)
Track 4'0" (aprx 1210mm)
Length 14'11" (aprx 4510mm)
Width 5'3" (aprx 1580mm)
Fuel Tank 11½ galls
Wheels Magna wire 3.25x18"
Tyres 5.25x18
Weight 29cwt

PRICE

£385
