Riley 9 Lincock. (1932-34)

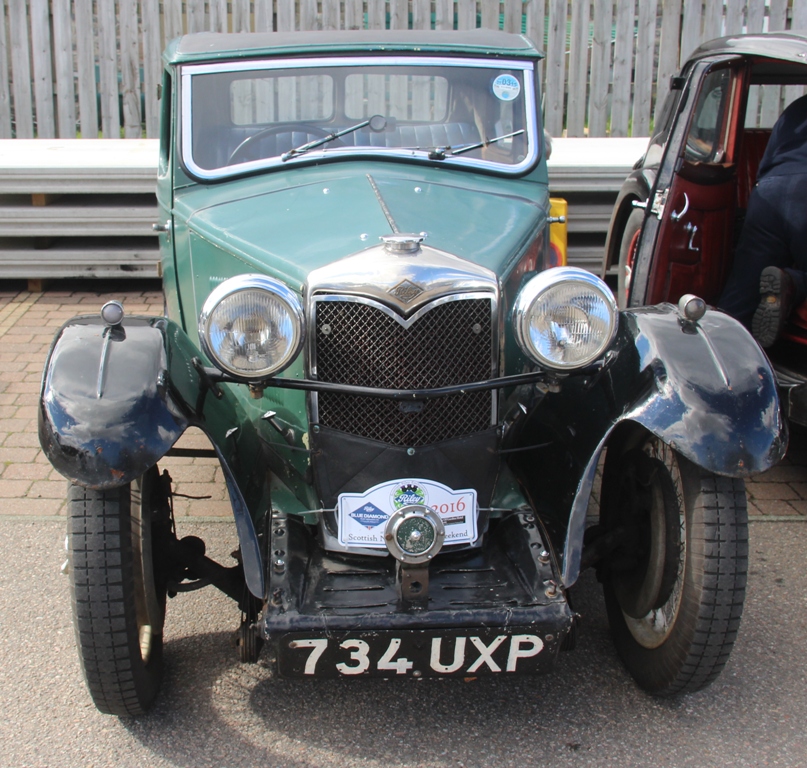

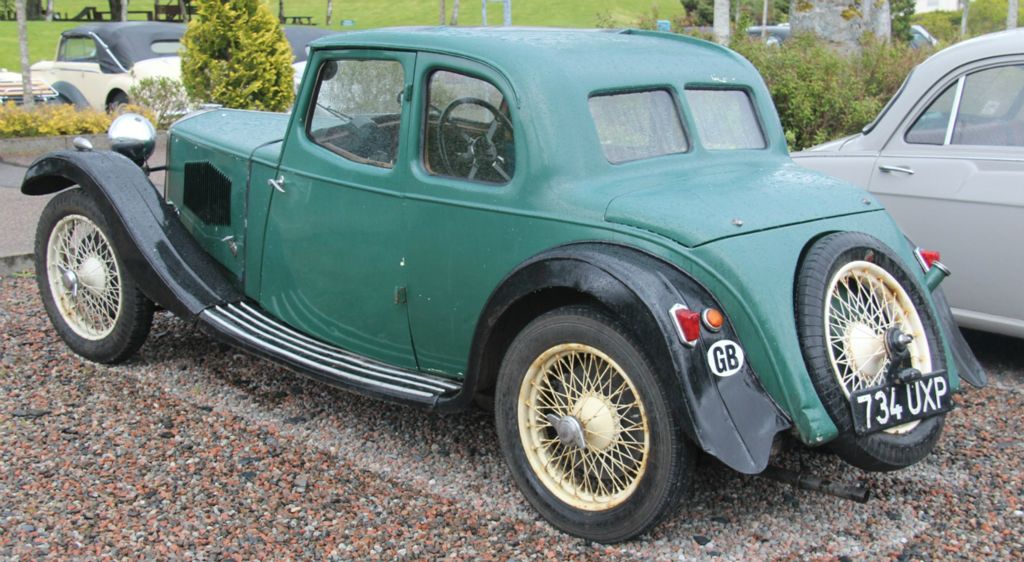

The Lincock was a handsome new 2-seater fixed head coupe, using the underslung chassis to produce a sleek and low design. It sold well on the nine chassis, but while it was also available on the larger 12/6 and 14/6 chassis, neither model seemed to sell in any quantity.

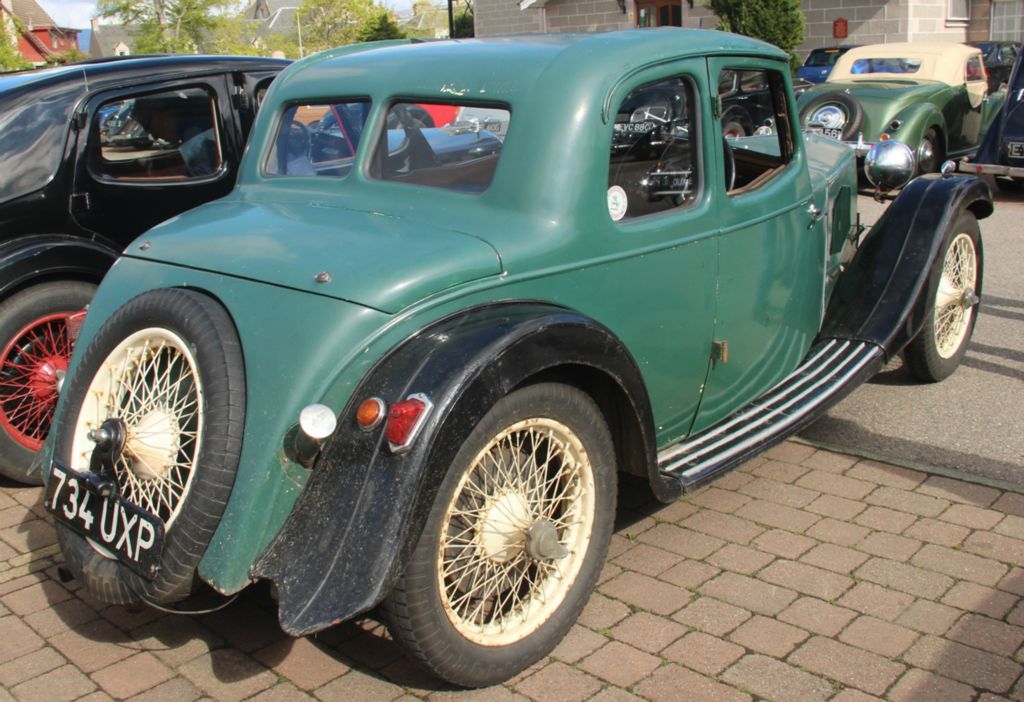

Inside the driver and passenger were accommodated on a narrow bench seat, with a split rear window behind. The boot was only accessible from the top outside, the sloping tail of the car being fixed and housing the spare wheel. This left an awkward space with difficult access. Neverthless, this stylish car sold around 300 examples on the 9 chassis in 2 years.

ENGINE

TRANSMISSION

9hp 4 cyl ohv
Bore 60.3 stroke 95.2
compression 5.2:1
Capacity 1087 cc
42bhp at 3600rpm
Carburation Zenith 		4-speed gearbox.
Top gear ratio 5.2:1

SUSPENSION

Semi-elliptic

STEERING

DIMENSIONS

Wheelbase 9' (aprx 2730mm)
Track 3'11" (aprx 1180mm)
Length / width: various bodies
Tyres 27x4.40
Weight 17cwt

BRAKES
