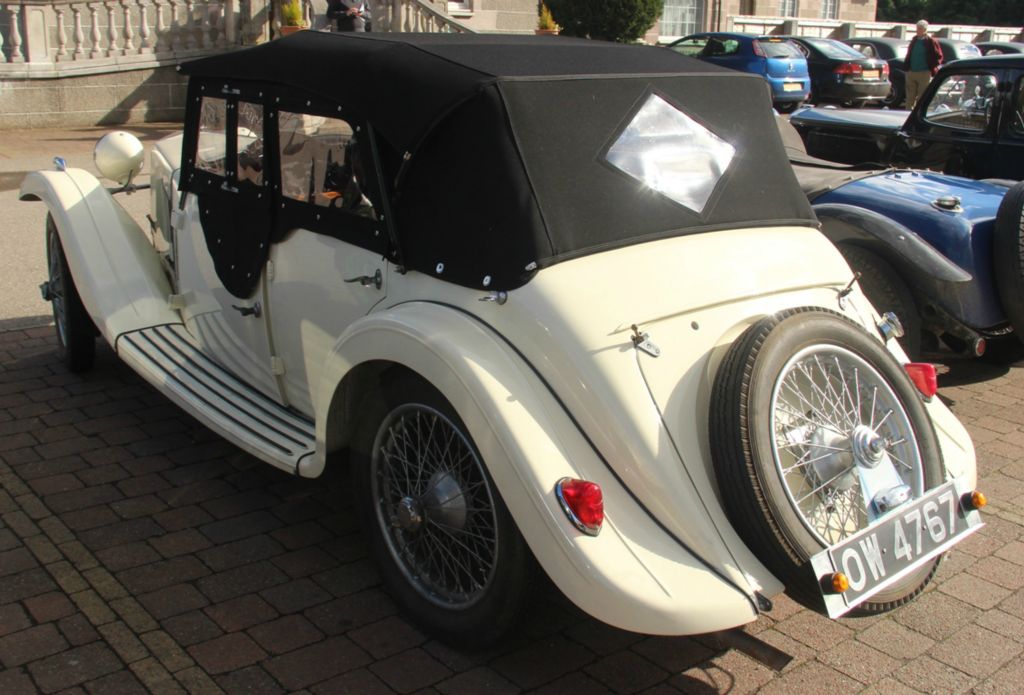

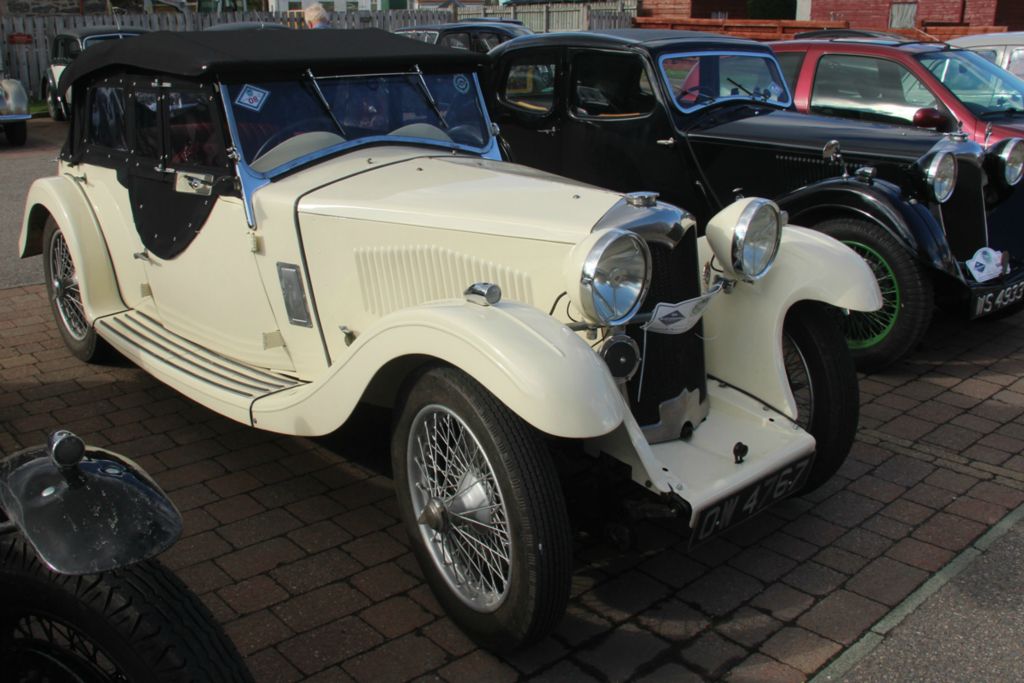

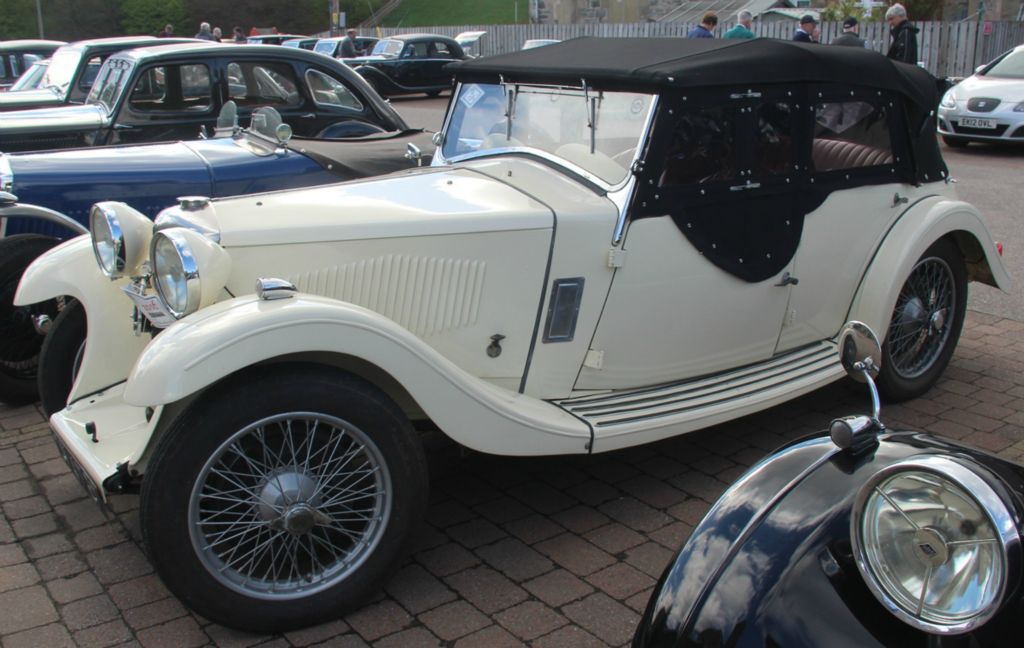

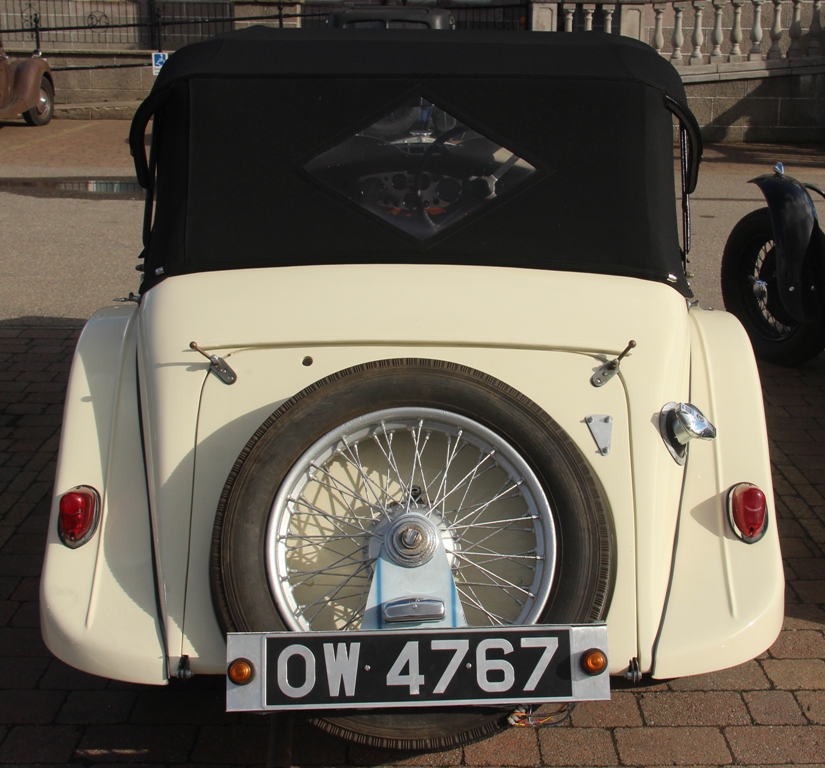

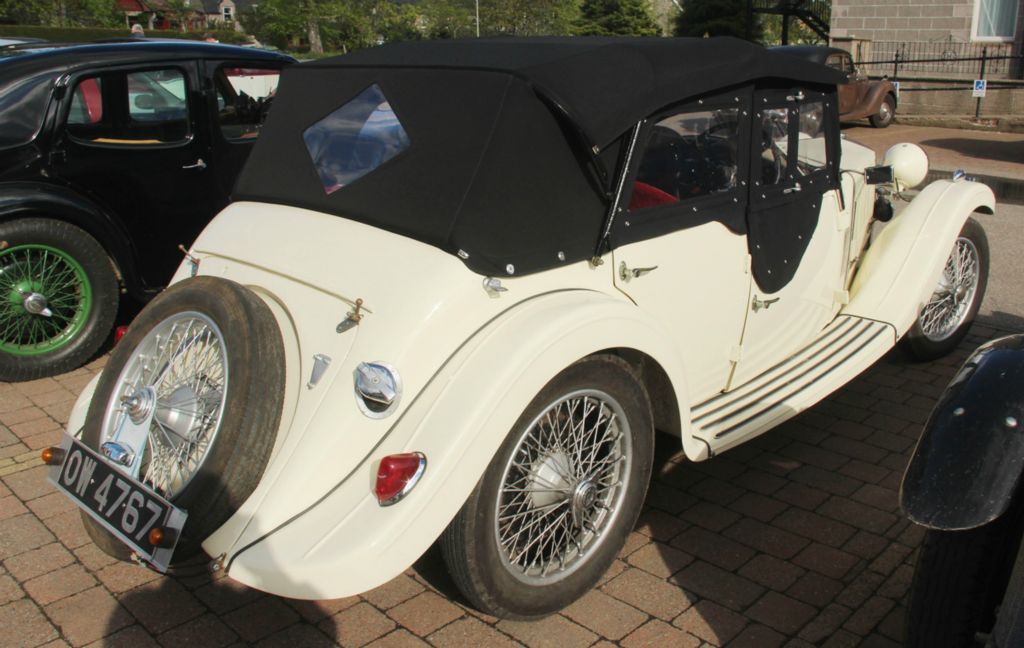

Riley 9 Lynx. (1934-35)
The Lynx was essentially a topless Kestrel, sharing the same 'sports' engines, and other features. It was initially launched at the same time as the Kestrel, and sold well. For the 1934 season, the original 2 door model was replaced with a 4-door model, which more closely resembled the large Lynx models.
The 4-door 4-seater bodywork made it more practical than the many 2-seater sports that Riley built, while the cut aways in the front doors gave it a sporty look, resembling the Riley racing cars.

The Lynx remained a top seller through 1934, perhaps selling 600 or more. However, 1935 was by comparison a very poor year with only a handful of cars identified, although this may have been caused by an early demise as many 9 models were discontinued for 1936.

ENGINE

TRANSMISSION

9hp 4 cyl ohv
Bore 60.3 stroke 95.2
compression 5.2:1
Capacity 1087 cc
42bhp at 3600rpm
Carburation Zenith 		4-speed gearbox.
Top gear ratio 5.2:1

SUSPENSION

Semi-elliptic

STEERING

DIMENSIONS

Wheelbase 9' (aprx 2730mm)
Track 3'11" (aprx 1180mm)
Length / width: various bodies
Tyres 27x4.40
Weight 17cwt

BRAKES
