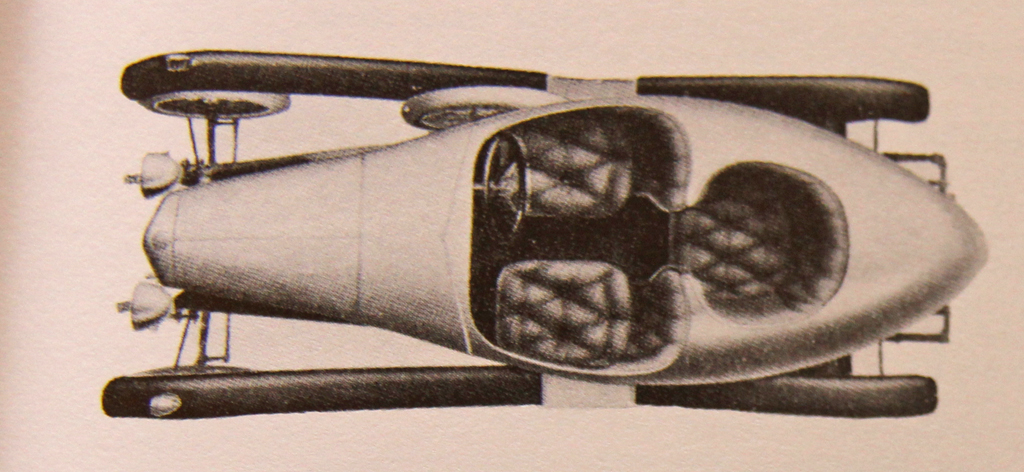

Riley 11/40 2/3-Seater Cloverleaf. (1924-25)

The 2/3 Seater model was also called the cloverleaf and was effectively a 2 seater tourer with an additional, occasional seat. This was set more or less centrally behind and between the two front seats in the tapering tail, and the cockpit was then shaped around the 3 seats in a loose cloverleaf pattern.

ENGINE

4cyl Sidevalve
RAC Rating 10.8hp
Bore 65.8 Stroke 110
Capacity 1498 cc
35bhp at 3200rpm
Carburation Zephyr / Zenith

TRANSMISSION

Cone Clutch Dry or in oil.
4-speed gearbox.
1st G/r15.5 or 16.7:1
2nd G/r10.8 or 11.6:1
3rd G/r6.9 or 7.4:1
4th G/r4.4 or 4.7:1
Reverse15.5 or 6.7:1

SUSPENSION

Semi Elliptic all round

BRAKES

Rods to Rear Wheels

PERFORMANCE

DIMENSIONS

Wheelbase 9' (aprx 2730mm)
Track 4' / 4'4" (aprx 1220 / 1320mm)
Length 13' (aprx 3940mm)
Width 5'6" (aprx 1620mm)
Wheels Disc, wire or Artillery 4-stud 760x90
Tyres 475/500 x 19
Weight 10 / 12.75cwt (chassis only).
Fuel Tank 7 Gallons

PRICE

£450
