Riley 11.9 4/5 Seater Tourer (1925-28)

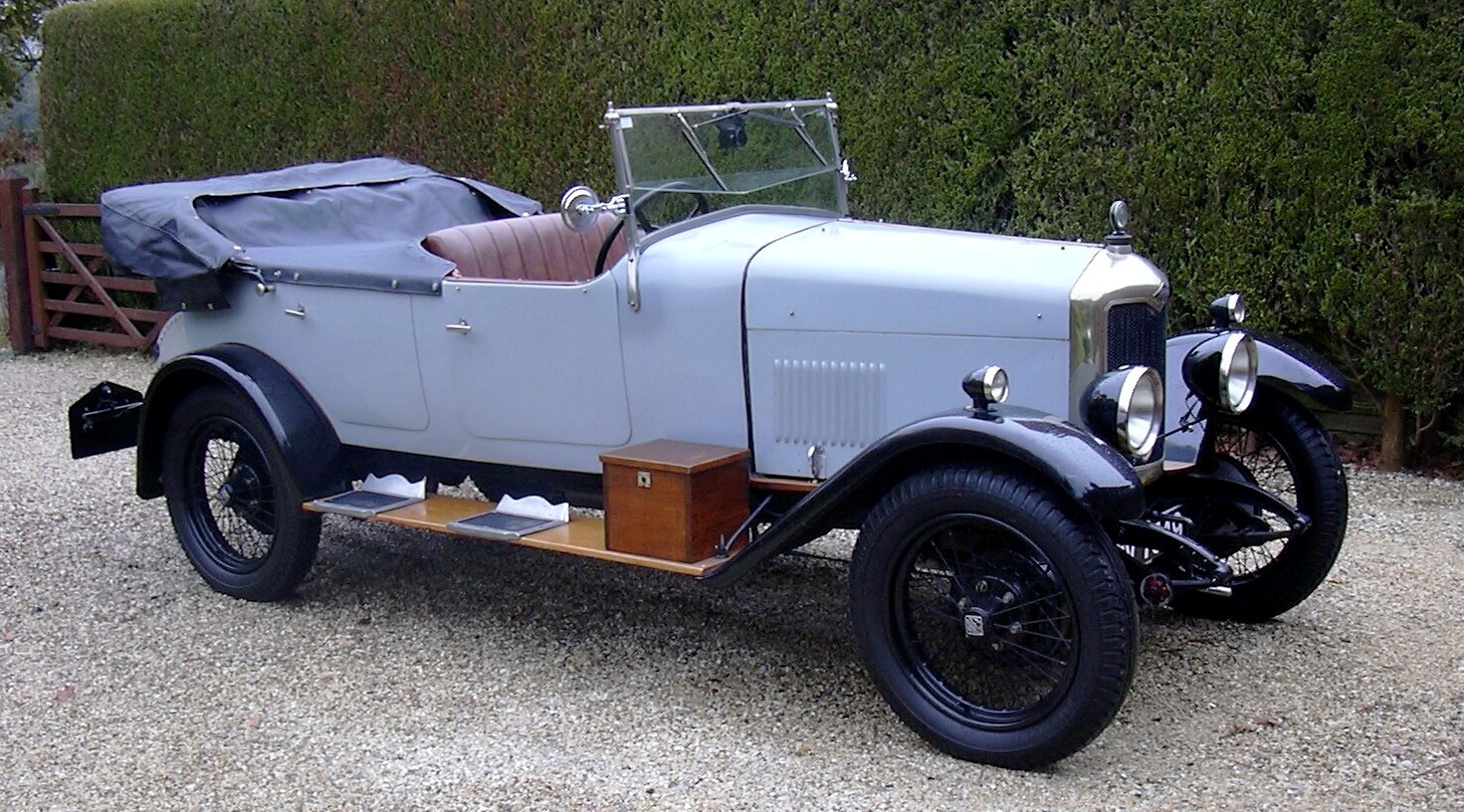

1927 Riley 11.9 4 seater Tourer (SV7549)
Photo courtesy of Robert Olive

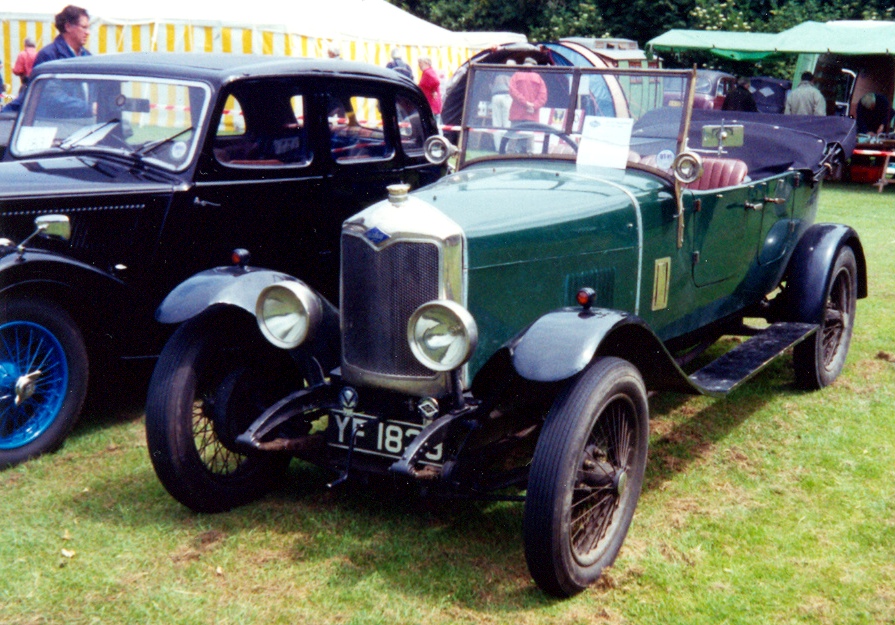

1927 Riley 11.9 4 Seater Tourer (YF1839)




ENGINE

4cyl Sidevalve
RAC Rating 11.9hp
Bore 69 Stroke 110
Capacity 1645 cc
42 bhp at 3600rpm
Carburation 1925 Cox-Atmos / 1926 Zenith

TRANSMISSION

Dry Plate Clutch
3-speed gearbox.
Top gear ratio 4.7:1
3rd G/r 7.4:1
2nd G/r 11.6:1
1st G/r 18.2:1
Reverse 18.2:1

SUSPENSION

Semi Elliptic

BRAKES

4-wheel self-compensating

PERFORMANCE

DIMENSIONS

Wheelbase 9'6" (aprx 2880mm)
Track 4'4" (aprx 1310mm)
Length 13'6" (aprx 4090mm)
Width 5'6" (aprx 1620mm)
Wheels Artillery or Wire 6-stud 19x3.0
Tyres 29x4.95
Weight 12.75cwt (chassis only)
Fuel Tank 7galls

PRICE

1925-7 £395
1928 £398
