Riley 14/6 Stelvio. (1929-31)

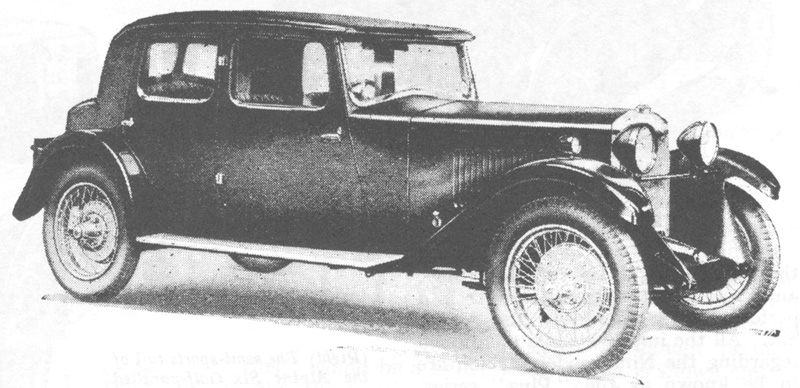

The Stelvio was one of the first bodies that Riley offered on the 14/6 Chassis. It was built by the Weymann Coachbuilding company, as an elegant 4-light body, with a boot. It used the longer of the two chassis produced for the 6-cylinder cars and was offered for two years before being replaced by the similar Stelvio II. The body was fabric covered, much like the smaller Monaco 9 launched a couple of years earlier, but the car was designed to look even sleeker, with the longer chassis and low roofline. Then, as now, however, there was a certain aritistic licence in some of the publicity material, and the image above may exaggerate the longm low lines a little. There was also a full-width rear luggage boot, which had a peaked top below the split rear window.
Unfortunately it is impossible now to identify where the changeover to the Stelvio II came in chassis numbers, but between the two models perhaps 200-250 were built, with a few believed to have survived.

Chassis Type: 14S


6cyl ohv
RAC Rating 13.5hp
Bore 60.3 Stroke 95.2
Firing Order 1, 5, 3, 6, 2, 4
Capacity 1633 cc


Riley Silent 3rd, 4-speed gearbox.
Overall Gear Ratios:
2nd 14.37:1
3rd 8.39:1
Top gear 5.75:1
Reverse 22.31:1




Cable & Rod fully compensating footbrake, on all 4 wheels.


Max speed 66.7mph
0-50 32secs
Fuel Consumption 19.3mpg


Wheelbase 10' (aprx 3040mm)
Track 4'8" (aprx 1400mm)
Length 13'9" (aprx 4230mm)
Width 5'6" (aprx 1670mm)
Wheels Wire 6-stud 3.50x20
Tyres 5.0x20
Fuel Tank 11galls.
Weight 26.75cwt (chassis only)
