Riley 1½ Lynx. (1936-38)

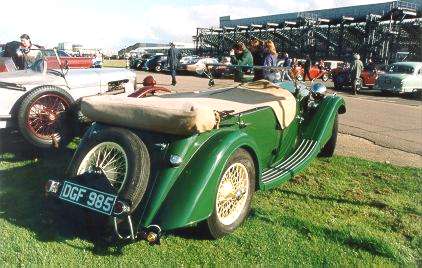

Riley 1½ Lynx
Photo courtesy of Thierry Donnart

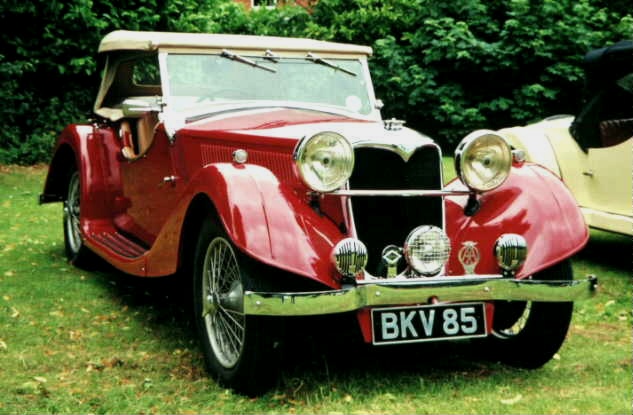

Riley 1½ Lynx
Photo courtesy of Thierry Donnart

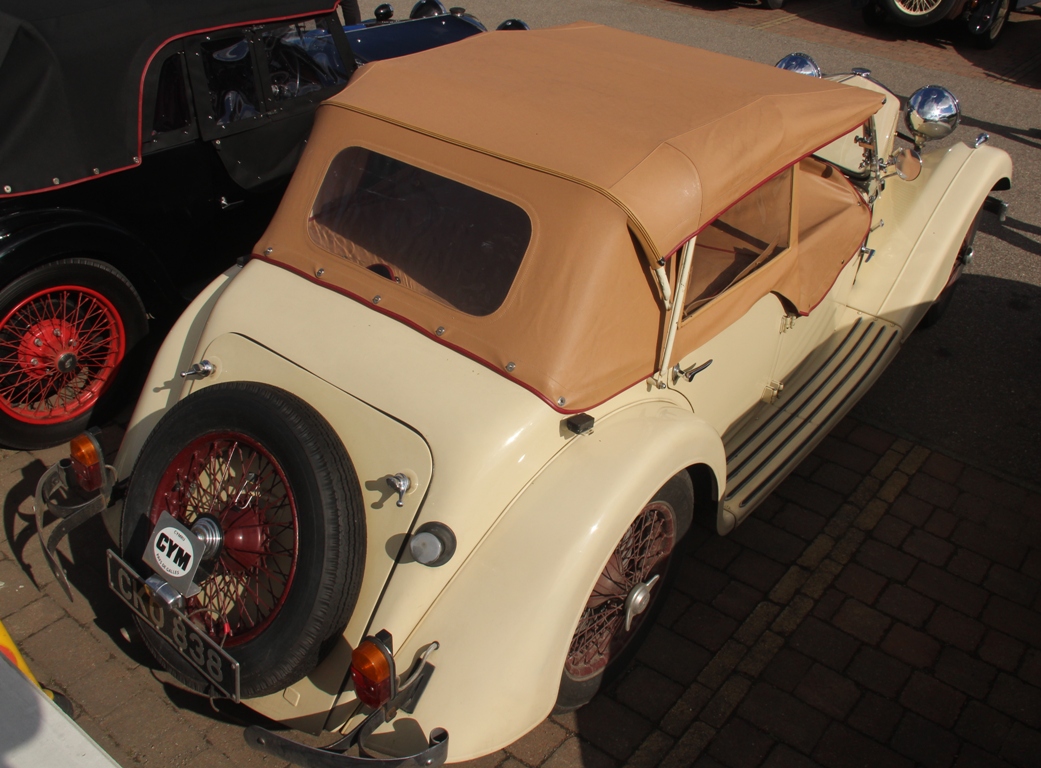

Riley 1½ Lynx
Photo courtesy of Brian Shepherd














Whilst the body remained almost unchanged, with the traditional cut away front doors, the Lynx was now also offered as the Lynx Sprite with the Sprite version of the 12/4 engine. For the 1937 model year these seem to have outsold the standard or special series offerings.
Chassis Types [Approx. Production Figures]: (S)26L [225] / 27L [100] / 28L [65]
 ENGINE
4cyl ohv
RAC Rating 11.9hp
Bore 69  Stroke 100
Capacity 1496 cc
51bhp at 4800rpm
Carburation 1 or 2 Zenith
 TRANSMISSION
4-speed gearbox.
Top gear ratio 5.22:1
3rd G/r 7.39:1
2nd G/r 10.91:1
1st G/r 18.79:1
Reverse 23.33:1
 SUSPENSION
Semi-elliptic
 BRAKES
Girling Mechanical rod wedge operated shoes
13" drums
 PERFORMANCE
0-50mph 17secs
Max speed 67mph
Fuel Consumption 27mpg
 DIMENSIONS
Wheelbase 9'1" (aprx 2750mm)
Track 4' (aprx 1200mm)
Length 14' (aprx 4250mm)
Width 4'11.5" (aprx 1480mm)
Wheels 3.0x18
Tyres 4.75x18
Weight 25cwt
Fuel Tank 10 galls
 PRICE
1936 £345; 1937 £345; 1938 £385
Lynx Concours (1937) £398
Special Series +£27
